Gongzheng Apsaras G4 is high resolution, high speeed Dye Sublimation printer designed for fast production of traditional paper transfer applications. Apsaras G4 use 4 Epson I3200-A1 Precision Core printheads in staggered configuration. Up to 1.95m width, using transfer papers between 35gsm and 100gsm. Printer is equiped with industrial grade paper feeder, robust anti-collision head carriage system. Efficient IR heater is part os standard equipment.

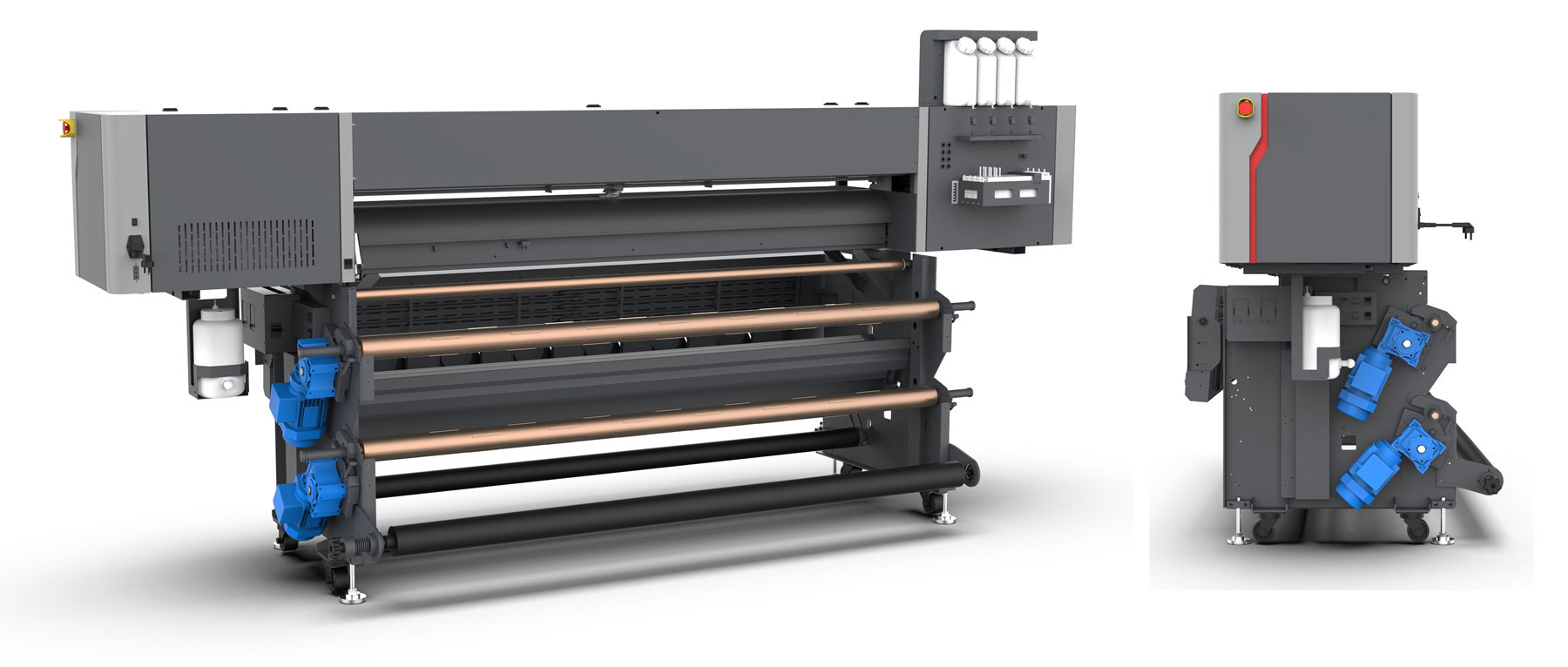

Apsaras G4 is designed and build like super wide printer. Solid anti-vibration construction, high quality materials and processing tolerances, unque anti-wrinkle print plate design, guarantee stability, print quality and continuos operation. Industrial approach to design without cost compromises. This is why is possible to have such high speeds while keeping quality.

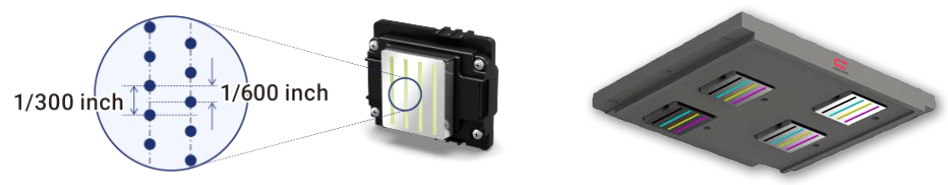

Apsaras G4 use Epson I3200-A1 precision core print heads. High resolution, very small drop size, high precision and excellent reliability. Nozzle density and staggered print head design make possible for this printer to reach up to 185 m2/h in 360x1200 dpi Draft mode. Hi Quality Production printing is possible already at 102 m2/h, while for extreme application lowest speed is High-res mode at stunning 88 m2/h at 720x1200 dpi. This is impossible to compare with competitors. There is simply no comparison wide forma market segment.
Ink system is optimized for highly pigmented Dye Sublimation ink which is supplied to 4 Epson I3200-A1 Precision Core print heads. Even on highest consumption there is minimum ink spray and low frequency of auto-cleaning cycles. Efficient IR drying system is here to make sure that prints are properly dried and prepared for sublimation, and that power consumption is minimal. Auto capping and wiping system provide easy daily operation and long life cycle of print heads.
| Model | Apsaras G4 |
|---|---|
| Print Head | 4 Epson I3200-A1 Precision Core Print Heads |
| Technology | Piezzo, Variable drop 4 levels |
| Ink | GS HD Sublimation transfer ink - certified OEKO TEX with EcoPassport |
| Avalible colors | CMYK + lclmlylk or CMYK + lclmFyFm (fluorescent) or CMYK + ORGB |
| Head configurations | 4xCMYK |
| Ink supply system | 3L Bulk ink with intermediate pressure controlled ink cartridges |
| Printing width | Max 1950mm |
| Media Type | paper from 35 gsm to 100 gsm |
| Transport system | Feeder max 1000m take-up max 500m |
| Roll diameter | up to 300 mm |
| Drying system | Inteligent section controlled IR dryer with blower fans |
| Printing speed | m2/h |
| Draft 360x1200 dpi | 185 m2/h |
| Production 360x1200 dpi | 165 m2/h |
| Hi-resolution 720x1200 dpi | 102 m2/h |
| Photo 720x1200 dpi | 88 m2/h |
| Data interface | Ethernet external, Fiber Optics internal |
| Working environment | Temp 18C~30C, Humidity 35% ~ 60% |
| Software | Ergosoft / FlexiPrint, GZ printer manager |
| Power | Single phase, 50/60Hz, AC 220V +/- 10%, 5.5A (Printer), 28A (IR Dryer) |
| Installed Size | LxWxH(mm): 3500x1090x1460 (printer) |
| Weight NW / GW | 525 kg / 750 kg |
*posted data could slightly differ due to measurement methodology and change due to constand development and process improvement
